Contextual Fit

The objective of this project is to design an addition to the 'Smith House'. This home was originally designed by architect Richard Meier. This addition must include a new concept and design while still maintaining the authenticity of the original home.


Narrative

A family of seven have moved into the house and are looking to expand.The parents are both commercial pilots who work in the airlines. They want their new addition to reflect their love for aviation in some way. The two oldest children have recently taken an interest in aviation, the oldest one has started working on their private pilot liscense. Both parents are very physically active, the mother is training for her first marathon. Their five kids are heavily involved in sports through their school. The family plans add an addition to the home to make it more accommodating for the family. An exercise room is their main concern they want to add to the home. If they could they would add an outdoor area to host guests

Sorting of Spaces

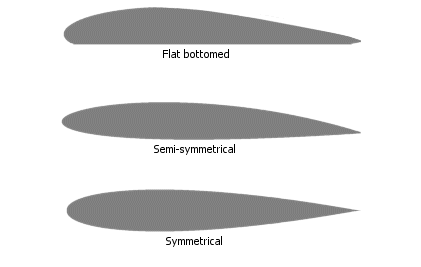

The meta idea is based upon the flat bottomed wing of an airplane.

The hierarchy of the addition is the exercise room.

- Family Room

- Exercise Room

- Outdoor Area

​

Public

- Master Bedroom

- Master Bathroom

Private

- Family Room

- Exercise Room

- Outdoor Area

​

Group

Individual

- Master Bedroom

- Master Bathroom

- Family Room

- Exercise Room

- Outdoor Area

​

Loud

- Master Bedroom

- Master Bathroom

Quiet

Contextual Analysis


Preliminary Ideas

Screenshot 2024-11-09 080705.jpg
Screenshot 2024-11-09 080730.jpg
Screenshot 2024-11-09 080759.png

Conceptual Meta Idea


Plan Analysis

Circulation

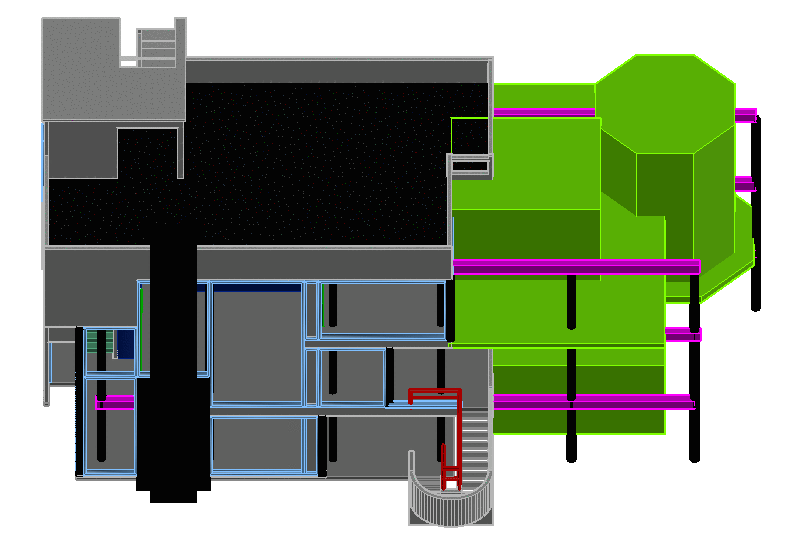

Structure

Hierarchy


Open vs. Closed


Closed

Open


Girder

Bearing Wall

Column

Existing and New Systems


Windows and Openings


Columns and Girders


Railings


Glass Curtain Wall


Floor Plans

First Floor

Second Floor

Third Floor

Screenshot 2024-11-16 082342.png
Screenshot 2024-11-16 082848.png
Screenshot 2024-11-16 084846.png

Sections

3D Sections

Screenshot 2024-11-17 152344.png
Screenshot 2024-11-17 153426.png

Elevations


Front Elevation


Back Elevation


Right Elevation


Left Elevation


Final Renders

Brockey_John Project 2-Temp0000.png
Brockey_John Project 2-Temp0001.png
Brockey_John Project 2-Temp0000.png
Brockey_John Project 2-Temp0002.png
Brockey_John Project 2-Temp0003.png
